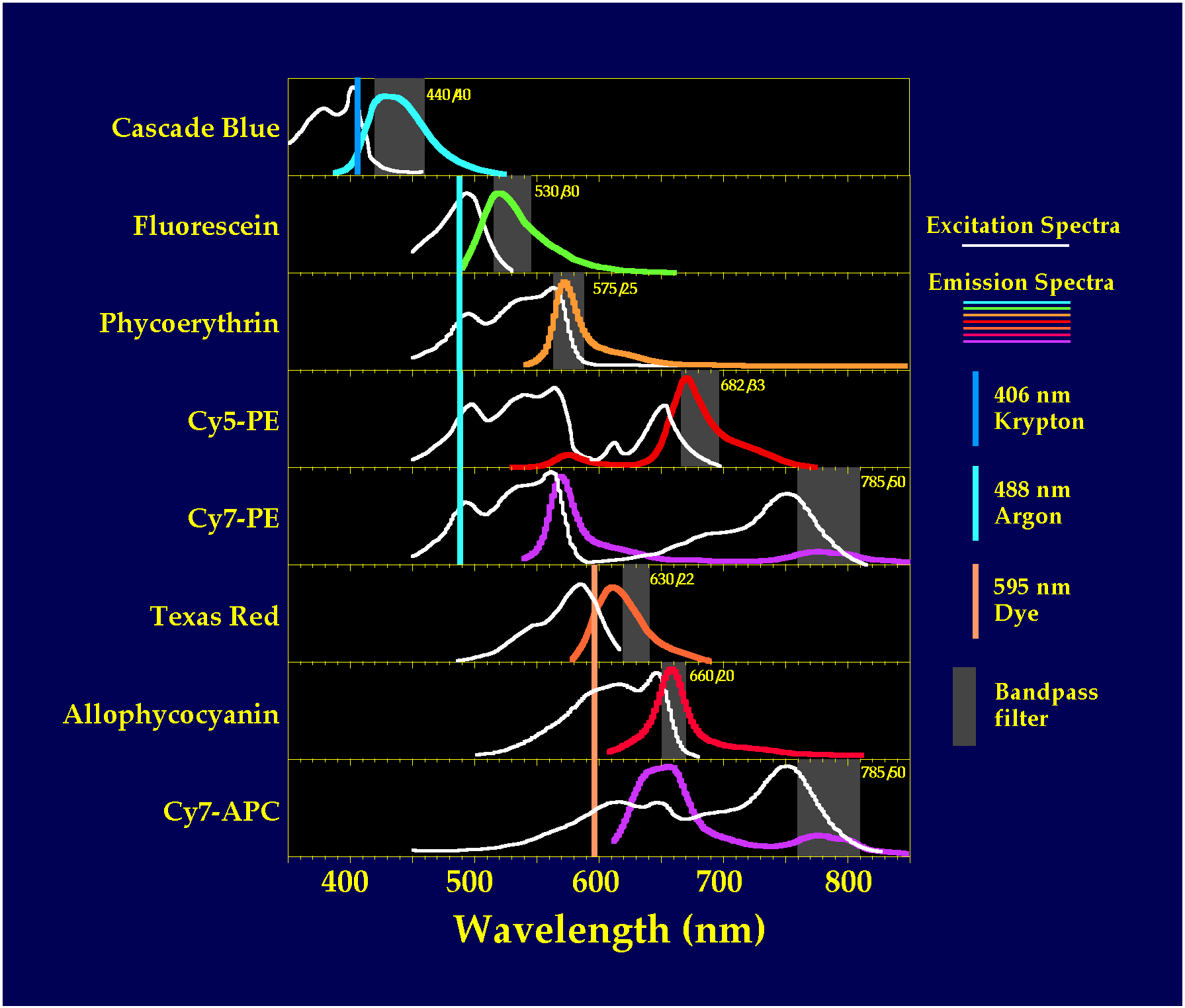

Fluorescence Spectra
Shown below are excitation and emission spectra for 8 different dyes used
in FACS immunofluorescence experiments.
Spectra are uncorrected for detector sensitivity and are scaled for presentation
purposes.
